Using the RCircos Package

Authors: Hongen Zhang  Reviser: Tianze Cao

2025-04-07

Source: vignettes/RCircos.Rmd
RCircos.Rmd

Introduction

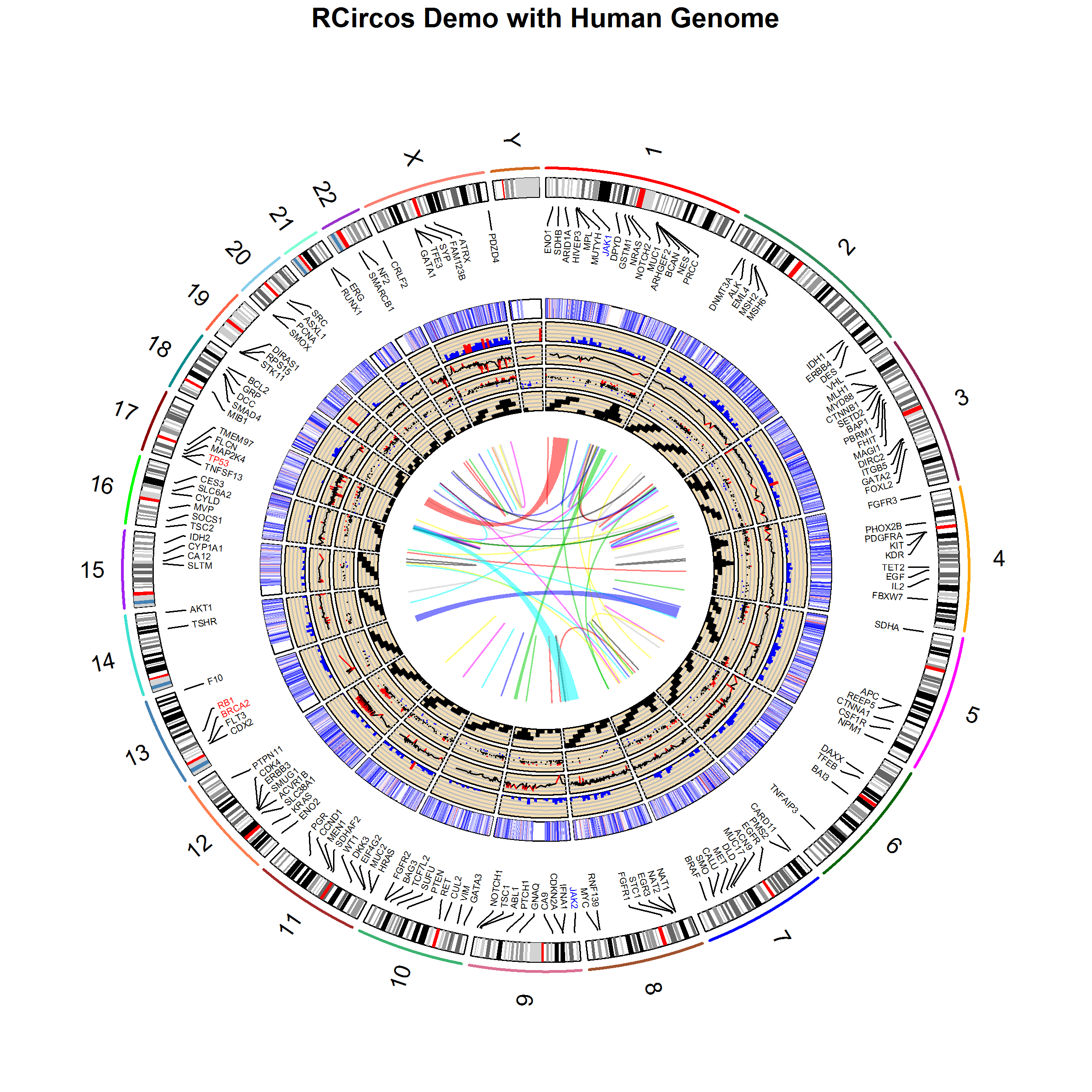

The RCircos package provides a set of graphic functions which implement basic Circos 2D track plot [Krzywinski] for visualizing similarities and differences of genome structure and positional relationships between genomic intervals. The package is implemented with R graphics package that comes with R base installation and aimed to reduce the complexity of usage and increase the flexibility in integrating into other R pipelines of genomic data processing.

Currently, following graphic functions are provided:

  • Chromosome ideogram plots for human, mouse, and rat

  • Data plots include:

    • heatmap

    • histogram

    • lines

    • scatterplot

    • tiles

  • Plot items for further decoration include:

    • connectors

    • links (lines and ribbons)

    • text (gene) labels

After successful installation of RCircos, one needs to load the library to get started using it:

Input Data Format

RCircos takes the input data in the form of a data frame that could be an object returned from read.table() or generated with other pipelines in the current R session. The first three columns of the data frame, except for input to the link plot, must be genomic position information in the order of chromosome names, chromosome start, and chromosome end positions.

data(RCircos.Histogram.Data)
head(RCircos.Histogram.Data)
##   Chromosome chromStart chromEnd     Data
## 1       chr1   45000000 49999999 0.070859
## 2       chr1   55000000 59999999 0.300460
## 3       chr1   60000000 64999999 0.125421
## 4       chr1   70000000 74999999 0.158156
## 5       chr1   75000000 79999999 0.163540
## 6       chr1   80000000 84999999 0.342921

For gene labels and heatmap plots, the gene/probe names must be provided in the fourth column. For other plots, this column could be optional.

data(RCircos.Heatmap.Data)
head(RCircos.Heatmap.Data)
##   Chromosome chromStart chromEnd GeneName  X786.O     A498 A549.ATCC    ACHN
## 1       chr1     934341   935552     HES4 6.75781  7.38773   6.47890 6.05517
## 2       chr1     948846   949919    ISG15 7.56297 10.49590   5.89893 7.58095
## 3       chr1    1138887  1142089 TNFRSF18 4.69775  4.55593   4.38970 4.50064
## 4       chr1    1270657  1284492     DVL1 7.76886  7.52194   6.87125 7.03517
## 5       chr1    1288070  1293915    MXRA8 4.49805  4.72032   4.62207 4.58575
## 6       chr1    1592938  1624243 SLC35E2B 8.73104  8.10229   8.36599 9.04116
##     BT.549  CAKI.1
## 1  8.85062 7.00307
## 2 12.08470 7.81459
## 3  4.47525 4.47721
## 4  7.65386 7.69733
## 5  5.66389 4.93499
## 6  9.24175 9.89727

Different from other plot data, the input data for link line plot has only paired genomic position information for each row in the order of chromosome name A, chromStart A, chromEnd A, chromosome name B, chromStart B, and chromEnd B.

data(RCircos.Link.Data)
head(RCircos.Link.Data)
##   Chromosome chromStart  chromEnd Chromosome.1 chromStart.1 chromEnd.1
## 1       chr1    8284703   8285399         chr1      8285752    8286389
## 2       chr1   85980143  85980624         chr7    123161313  123161687
## 3       chr1  118069850 118070319         chr1    118070329  118070689
## 4       chr1  167077258 167077658         chr1    169764630  169764965
## 5       chr1  171671272 171671550         chr1    179790879  179791292
## 6       chr1  174333479 174333875         chr6    101861516  101861840

Note: RCircos will convert the input data to RCircos plot data but it does not provide functionality for general data processing. If the data frame does not have genomic position information, you have to add the information to the data frame before passing it to RCircos functions. Sample datasets are included in the package for demo purpose and they could be easily explored with data() method.

Starting from version 1.1.2, user can append to input data a column of plot color names with header of “PlotColor” to control the colors for each data point except of heatmap plot.

Plot Track Layout

RCircos follows the same algorithm of Circos plot and arranges data plots in tracks. A track could be placed either inside or outside of chromosome ideogram and the detailed position for a track could be easily manipulated by changing of the track width and track numbers.

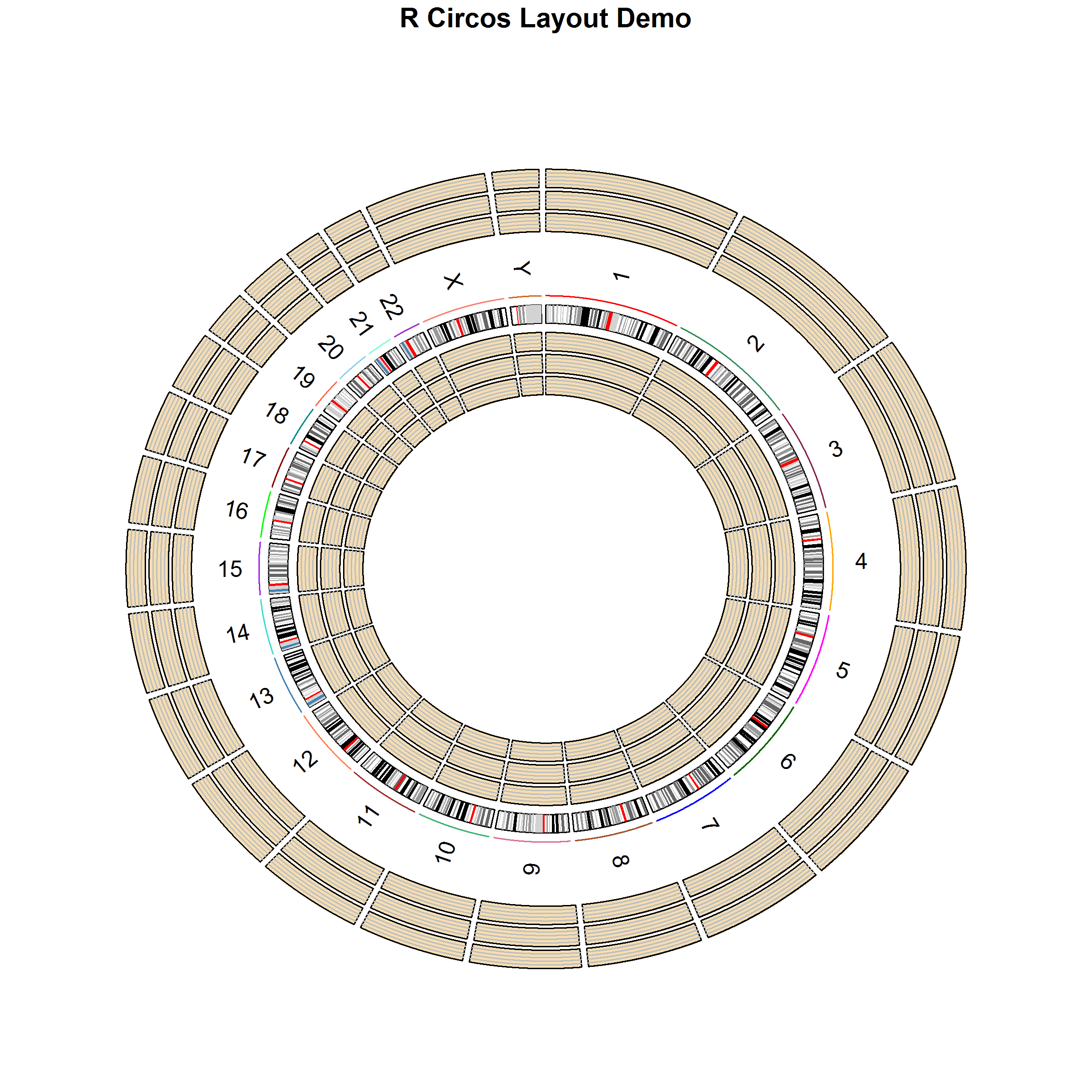

The figure below shows a human chromosome ideogram plus three empty tracks arranged in both inside and outside of chromosome ideogram.

Getting Started: Initialize RCircos core components first

Initialize RCircos core components

The first step of making RCircos plot is to initialize RCircos core components. To setup RCircos core components, user needs load the chromosome ideogram data into current R session. The RCircos package have three build-in datasets for human, mouse, and rat chromosome ideograms which can be loaded with data() command. Ideogram data in text files with same format can also be loaded with read.table() function in R.

data(UCSC.HG19.Human.CytoBandIdeogram);
head(UCSC.HG19.Human.CytoBandIdeogram);
##   Chromosome ChromStart ChromEnd   Band  Stain
## 1       chr1          0  2300000 p36.33   gneg
## 2       chr1    2300000  5400000 p36.32 gpos25
## 3       chr1    5400000  7200000 p36.31   gneg
## 4       chr1    7200000  9200000 p36.23 gpos25
## 5       chr1    9200000 12700000 p36.22   gneg
## 6       chr1   12700000 16200000 p36.21 gpos50
data(UCSC.Mouse.GRCm38.CytoBandIdeogram);
head(UCSC.Mouse.GRCm38.CytoBandIdeogram);
##   Chromosome ChromStart ChromEnd Band   Stain
## 1       chr1          0  8840440  qA1 gpos100
## 2       chr1    8840440 12278390  qA2    gneg
## 3       chr1   12278390 20136559  qA3  gpos33
## 4       chr1   20136559 22101102  qA4    gneg
## 5       chr1   22101102 30941543  qA5 gpos100
## 6       chr1   30941543 43219933   qB    gneg
data(UCSC.Baylor.3.4.Rat.cytoBandIdeogram);
head(UCSC.Baylor.3.4.Rat.cytoBandIdeogram);
##   Chromosome ChromStart ChromEnd Band Stain
## 1       chr1          0 10142096  p13  gneg
## 2       chr1   10142096 24272657  p12  gvar
## 3       chr1   24272657 38517175  p11  gneg
## 4       chr1   38517175 48659271  q11  gpos
## 5       chr1   48659271 69741157  q12  gneg
## 6       chr1   69741157 90025350  q21  gpos

After the chromosome ideogram data is loaded, RCircos core components can be initialized with function of RCircos.Set.Core.Components(). This function needs four arguments:

cytoinfo

the chromosome ideogram data loaded

chr.exclude

chromosomes should be excluded from ideogram, e.g., chr.exclude <- c(“chrX”, “chrY”);. If it is set to NULL, no chromosome will be excluded.

tracks.inside

how many tracks will be plotted inside chromosome ideogram

tracks.outside

how many data tracks will be plotted outside chromosome ideogram

Following code initialize RCircos core components with all human chromosome ideogram and 10 data track space inside of chromosome ideogram.

chr.exclude <- NULL;
cyto.info <- UCSC.HG19.Human.CytoBandIdeogram;
tracks.inside <- 10;
tracks.outside <- 0;
RCircos.Set.Core.Components(cyto.info, chr.exclude,
       tracks.inside, tracks.outside);
##
## RCircos.Core.Components initialized.
## Type ?RCircos.Reset.Plot.Parameters to see how to modify the core components.

RCircos use three core components to perform data transformation and data plot:

RCircos cytoband data

RCircos cytoband data is derived from the input chromosome ideogram data. Except of the chromosome name, start and end positions, band name and stain intensity for each band, chromosome highlight colors, band colors, band length in base pairs and chromosome units as well as the relative location on the circular layout are also included. These data are used to calculate the plot location of each genomic data.

RCircos plot positions

RCircos plot positions are x and y coordinates for a circular line of radius 1.0 and the total number of points for the circular line are decided by the total number of chromosome units. One chromosome units is a plot point which covers a defined number of base pairs and total units for chromosome ideogram include units of each band plus chromosome padding area, both of them are defined in the list of plot parameters.

RCircos plot parameters

RCircos plot parameters are only one core components open to users. With the get and reset methods, users can modify the parameters for updating other two core components. Following are RCircos plot parameters and their default values:

base.per.unit

Number of base pairs a chromosome unit (a plot point) will cover, default: 30000

chrom.paddings

Width of padding between two chromosomes in chromosome unit, default: 300 (Note: chrom.paddings is binded to base.per.unit. It will be automatically updated if the base.per.unit is changed, unless be set to zero).

tracks.inside

Total number of data tracks inside of chromosome ideogram. Read-only.

tracks.outside

Total number of data tracks outside of chromosome ideogram. Read-only.

radiu.len

The radius of a circular line which serves as baseline for calculation of plot items, default: 1

plot.radius

Radius of plot area,default: 1.5

chr.ideo.pos

Radius of chromosome ideogram position, default: 1.1

highlight.pos

Radius of chromosome ideogram highlights, default: 1.25

chr.name.po

Radius of chromosome name position, default: 1.4

track.in.start

Radius of start position of the first track inside of chromosome idogram, default: 1.05

track.out.start

Radius of start position of the first track outside of chromosome idogram, default: 1.6

chrom.width

Width of chromosomes of the ideogram, default: 0.1

track.padding

Width of padding between two plot tracks, default: 0.02

track.height

Height of data plot track, default: 0.1 (Note: Parameters above are all relative to the radius.len and will be updated automatically if new radiu.len is reset.

hist.width

Width of histogram column in chromosome unit, default: 100

heatmap.width

Width of heatmap cells in chromosome unit, default: 100

text.size

Character size (same as cex in R graphics package) for text plot, default: 0.4

char.width

Width of a charater on RCircos plot, default 500 (chromosome unit)

highlight.width

Line type (same as lty in R graphics package) for chromosome highlight, default: 2

point.size

Point size (same as cex in R graphics package) for scatter plot, default: 1

Bezier.point

Total number of points for a link(Bezier) line default: 1000

max.layers

Maximum number of layers for tile plot, default: 5

sub.tracks

Number of sub tracks in a data track, default: 5

text.color

Color for text plot, default: black

hist.color

Color for histgram plot, default: red

line.color

Color for line plot, default: black

scatter.color

Color for scatter plot, default: black

tile.color

Color for tile plot, default: black

track.background

Color of track background, default: white

grid.line.color

Color for track grids, default: gray

heatmap.color

Color scales for heatmap plot, default: BlueWhiteRed

point.type

Point type (same as pch in R graphics package) for scatter plot, default: “.”

The core components are stored in RCircos session and each component is supplied with one Get method for advanced usage. In addition, simply call the function RCircos.List.Parameters() will list all current plot parameters.

rcircos.params <- RCircos.Get.Plot.Parameters();
rcircos.cyto <- RCircos.Get.Plot.Ideogram();
rcircos.position <- RCircos.Get.Plot.Positions();
## Parameters for current RCircos session.
##
## Parameters in inch:
## ==============================
## radius.len:      1.84
## chr.ideo.pos:        1.94
## highlight.pos:       2.09
## chr.name.pos:        2.14
## plot.radius:     2.64
## track.in.start:      1.89
## track.out.start: 2.49
## chrom.width:     0.1
## track.padding:       0.02
## track.height:        0.1
##
## Parameters in chromosome unit:
## ==============================
## base.per.unit:       30000
## chrom.paddings:      300
## heatmap.width:       100
## hist.width:      100
## gene name char. width:   500
##
## General R graphic parameters:
## ==============================
## text.size:       0.4
## highlight.width: 2
## point.type:      .
## point.size:      1
## text.color:      black
## heatmap.color:       BlueWhiteRed
## hist.color:      red
## line.color:      black
## scatter.color:       black
## tile.color:      black
## track.background:    white
## grid.line.color: gray
## Bezier.point:        1000
## max.layers:      5
## sub.tracks:      5
##
## Data track numbers:
## ==============================
## tracks.inside:       10
## tracks.outside:      0
## Following are procedures to change RCircos plot parameters:
## params <- RCircos.Get.Plot.Parameters();
## params$radius.len <- 2.0;
## params$base.per.unit <- 5000;
## RCircos.Reset.Plot.Parameters(params)
##
## Chromosome ideogram data were automatically modified.

Modifying RCircos core components

Among the three RCircos core components, RCircos cytoband data and RCircos plot positions are calculated based on plot parameter setting. Users can modify RCircos core components by changing plot parameters. Once the plot parameter(s) is changed, call and pass the new parameters to the function of RCircos.Reset.Plot.Parameters(), other two components will be checked for update.

rcircos.params <- RCircos.Get.Plot.Parameters();
rcircos.params$base.per.unit <- 3000;
RCircos.Reset.Plot.Parameters(rcircos.params);
## Parameters for current RCircos session.
##
## Parameters in inch:
## ==============================
## radius.len:      1.84
## chr.ideo.pos:        1.94
## highlight.pos:       2.09
## chr.name.pos:        2.14
## plot.radius:     2.64
## track.in.start:      1.89
## track.out.start: 2.49
## chrom.width:     0.1
## track.padding:       0.02
## track.height:        0.1
##
## Parameters in chromosome unit:
## ==============================
## base.per.unit:       3000
## chrom.paddings:      300
## heatmap.width:       100
## hist.width:      100
## gene name char. width:   500
##
## General R graphic parameters:
## ==============================
## text.size:       0.4
## highlight.width: 2
## point.type:      .
## point.size:      1
## text.color:      black
## heatmap.color:       BlueWhiteRed
## hist.color:      red
## line.color:      black
## scatter.color:       black
## tile.color:      black
## track.background:    white
## grid.line.color: gray
## Bezier.point:        1000
## max.layers:      5
## sub.tracks:      5
##
## Data track numbers:
## ==============================
## tracks.inside:       10
## tracks.outside:      0
## Following are procedures to change RCircos plot parameters:
## params <- RCircos.Get.Plot.Parameters();
## params$radius.len <- 2.0;
## params$base.per.unit <- 5000;
## RCircos.Reset.Plot.Parameters(params)
##
## Chromosome ideogram data were automatically modified.

Making a Plot with RCircos

Plotting with RCircos is a stepwise process. First, an initialization step is needed. Then, tracks and other aspects of the plot are added sequentially. The result is available after the plot has been entirely constructed. The next subsections walk through the process in detail.

Initialize Graphic Device

RCircos provides a set of graphic plot functions but does not handle graphic devices. To make RCircos plots, a graphic device has to be opened first. Currently, RCircos works with files supported by R graphics package such as tiff, png, pdf images as well as GUI windows. For example, to make a pdf file with RCircos plot image:

out.file <- "RCircosDemoHumanGenome.pdf";
pdf(file=out.file, height=8, width=8, compress=TRUE);
RCircos.Set.Plot.Area();

Note: RCircos.Set.Plot.Area() will setup plot area base on total number of tracks inside and outside of chromosome ideogram. User can also setup plot area by summit the R plot commands for user defined plot area, for example:

par(mai=c(0.25, 0.25, 0.25, 0.25));
plot.new();
plot.window(c(-2.5,2.5), c(-2.5, 2.5));

Note: After everything is done, the graphic device needs to be closed with dev.off().

Plot Chromosome Ideogram

For RCircos plot, a common first step is to draw chromosome ideograms and label chromosomes with names and highlights. After the RCircos core components were initialized and graphic device was open, simply call the function of
RCircos.Chromosome.Ideogram.Plot() will add the chromosome ideogram to the current plot.

Gene Labels and connectors on RCircos Plot

Due to the resolution issues, only limited number of gene names can be labeled. For best visualization, cex should be no less than 0.4 when draw gene labels. When cex is set to 0.4, width of character will be 5000 chromosome units when each unit covers 3000 base pairs. If the gene name list supplied is too long, it will be truncated to fit the chromosome length. Also the long gene name will span more than one track so one or more tracks may be needed to skip for next track.

Connectors are used to mark a genomic position with their names or variant status. Currently, RCircos only provide connector plot between genes and their genomic positions. The following code draw connectors on the first track inside chromosome ideogram and plot gene names on the next track.

data(RCircos.Gene.Label.Data);

name.col <- 4;
side <- "in";

track.num <- 1;
RCircos.Gene.Connector.Plot(RCircos.Gene.Label.Data,
        track.num, side);

track.num <- 2;
RCircos.Gene.Name.Plot(RCircos.Gene.Label.Data,
        name.col,track.num, side);

Heatmap, Histogram, Line, Scatter, and Tile Plot

Heatmap, histogram, line, scatter, and tile plot with RCircos require that the first three columns of input data are genomic position information in the order of chromosome name, start, and end position. RCircos provides one function for each type of plots and each function will draw one data track. User can simply call each function with appropriate arguments such as plot location (which track and which side of chromosome ideogram). No more data processing needed.

The code below will draw data tracks of heatmap, scatter, line, histogram, and tile plots.

data(RCircos.Heatmap.Data);
data.col <- 6;
track.num <- 5;
side <- "in";
RCircos.Heatmap.Plot(RCircos.Heatmap.Data, data.col,
    track.num, side);
data(RCircos.Scatter.Data);
data.col <- 5;
track.num <- 6;
side <- "in";
by.fold <- 1;
RCircos.Scatter.Plot(RCircos.Scatter.Data, data.col,
    track.num, side, by.fold);
data(RCircos.Line.Data);
RCircos.Line.Data$chromosome=paste0("chr",RCircos.Line.Data$chromosome)
data.col <- 5;
track.num <- 7;
side <- "in";
RCircos.Line.Plot(RCircos.Line.Data, data.col,
    track.num, side);
data(RCircos.Histogram.Data);
data.col <- 4;
track.num <- 8;
side <- "in";
RCircos.Histogram.Plot(RCircos.Histogram.Data,
    data.col, track.num, side);
data(RCircos.Tile.Data);
track.num <- 9;
side <- "in";
RCircos.Tile.Plot(RCircos.Tile.Data, track.num, side);

Links presents relationship of two genomic positions and it is always the last track inside chromosome ideogram. Different from other data plots, input data for links plot is a data frame with paired genomic positions in the order of chromosome, start, and end position for each one genomic position. RCircos supports two types of link plot: lines and ribbons. Link lines are used for presenting relationship of two small genomic regions and ribbons are plotted for bigger genomic regions. Colors for links between chromosomes or same chromosomes could be modified by defining by.chromosome=TRUE (or FALSE).

Following code draw link lines and ribbons in the center of plot area.

data(RCircos.Link.Data);
track.num <- 11;
RCircos.Link.Plot(RCircos.Link.Data, track.num, TRUE);

data(RCircos.Ribbon.Data);
RCircos.Ribbon.Plot(ribbon.data=RCircos.Ribbon.Data,
    track.num=11, by.chromosome=FALSE, twist=FALSE);

dev.off();

Run all code above will generate an image like below.

graphic without alt text

More Information

Several demo samples are included in the package. Simply run following demos to see how the RCircos works for simple and complex RCircos plot.

library(RCircos);
demo("RCircos.Demo.Human");
demo("RCircos.Demo.Mouse.And.Rat");

sessionInfo

## R version 4.5.1 (2025-06-13)
## Platform: x86_64-pc-linux-gnu
## Running under: Ubuntu 24.04.2 LTS
##
## Matrix products: default
## BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
## LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
##
## locale:
##  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
##  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
##  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
## [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
##
## time zone: UTC
## tzcode source: system (glibc)
##
## attached base packages:
## [1] stats     graphics  grDevices utils     datasets  methods   base
##
## other attached packages:
## [1] RCircos_1.2.2 knitr_1.50
##
## loaded via a namespace (and not attached):
##  [1] digest_0.6.37     desc_1.4.3        R6_2.6.1          bookdown_0.43
##  [5] fastmap_1.2.0     xfun_0.52         cachem_1.1.0      htmltools_0.5.8.1
##  [9] rmarkdown_2.29    lifecycle_1.0.4   cli_3.6.5         pkgdown_2.1.3
## [13] sass_0.4.10       textshaping_1.0.1 jquerylib_0.1.4   systemfonts_1.2.3
## [17] compiler_4.5.1    tools_4.5.1       ragg_1.4.0        evaluate_1.0.3
## [21] bslib_0.9.0       yaml_2.3.10       jsonlite_2.0.0    rlang_1.1.6
## [25] fs_1.6.6

References

  • Krzywinski, Martin I and Schein, Jacqueline E and Birol, Inanc and Connors, Joseph and Gascoyne, Randy and Horsman, Doug and Jones, Steven J and Marra, Marco A. Circos: An information aesthetic for comparative genomics. Genome Research, 2009.
